Platform Trailers

Platform Trailers

GENERAL INFORMATIONS

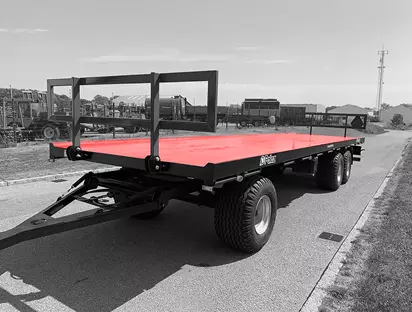

4 MM PLATFORM 1
4 MM PLATFORM

All range of bale trailers have 4 mm platform thickess, ST-52 Profile chassis and ST-52 Profile axles. That means your bales are transporting on strong, stable and balanced trailer. This drive will be more confortable and safe.

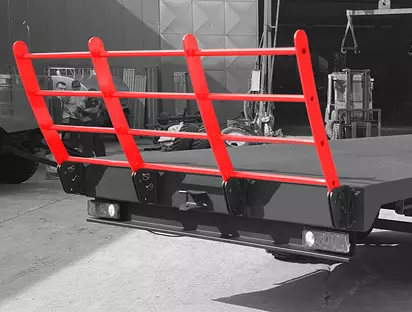

CURVED BARRIER 2
CURVED BARRIER

Curved barriers will fit with your roll bales and keep them during all transport time. Barriers can open up to 1800 angle and become a spare loading surface for you.

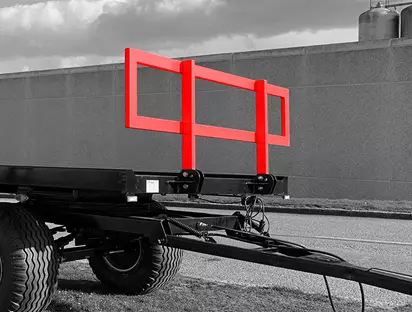

SQUARE BARRIER 3
SQUARE BARRIER

Square barriers will fit with your square bales and keep them during all transport time. Barriers can open up to 1800 angle and become a spare loading surface for you.

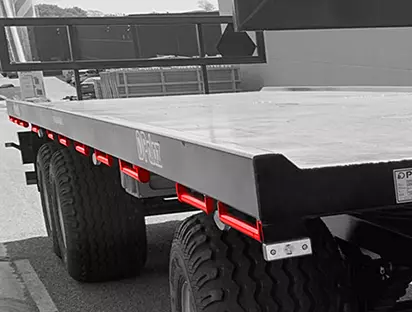

LASHING HOLDER 4
LASHING HOLDER

If would you like to take extra prevention and decide to put belts on your bales, our lashing strap holders are placed on each side of bale trailer. If you check you will see that there are enough pieces of holders on trailer

TECHNICAL INFORMATIONS

GENERAL
Product CodeRD2B08BRD2B10BRD2B14BRR2B10BRR2B12BRR2B15BRD3B16BRD3B20B
Number Of Axles1 Front / 1 Rear1 Front / 1 Rear1 Front / 1 Rear 2 Rear 2 Rear 2 Rear1 Front / 2 Rear1 Front / 2 Rear
Permitted Gross Weight111.000 Kg13.000 Kg16.000 Kg11.000 Kg13.000 Kg16.000 Kg19.500 Kg21.000 Kg
Permitted Gross Weight With Coupling111.000 Kg13.000 Kg16.000 Kg14.000 Kg16.000 Kg19.000 Kg19.500 Kg21.000 Kg
Technical Gross Weight211.000 Kg13.000 Kg16.000 Kg11.000 Kg13.000 Kg16.000 Kg19.500 Kg25.000 Kg
Axle 15.500 Kg6.500 Kg8.000 Kg5.500 Kg6.500 Kg8.000 Kg6.500 Kg7.000 Kg
Axle 25.500 Kg6.500 Kg8.000 Kg5.500 Kg6.500 Kg8.000 Kg6.500 Kg7.000 Kg
Axle 3------6.500 Kg7.000 Kg
Max. Drawbar Load---3.000 Kg3.000 Kg3.000 Kg--
Kerb Weight32.400 Kg2.800 Kg3.000 Kg2.700 Kg3.000 Kg3.300 Kg3.900 Kg4.100 Kg
Permitted Max Pay Load48.600 Kg10.200 Kg13.000 Kg8.300 Kg10.000 Kg12.700 Kg15.600 Kg16.900 Kg
Permitted Max Pay Load With Drawbar48.600 Kg10.200 Kg13.000 Kg11.300 Kg13.000 Kg15.700 Kg15.600 Kg16.900 Kg
Technical Max Pay Load58.600 Kg10.200 Kg13.000 Kg11.300 Kg13.000 Kg15.700 Kg15.600 Kg20.900 Kg
Permitted Max Speed6< 40 km/h< 40 km/h< 40 km/h< 40 km/h< 40 km/h< 40 km/h< 40 km/h< 40 km/h
Platform Dimensions (mm)6000x24008000x24008500x24006500x24008000x24008400x24009600x24009900x2400
Barrier Height (mm)12001200120012001200120012001200
Wheels400/60-15,5400/60-15,5435/50-19,5400/60-15,5500/50-17435/50-19,5500/50-17435/50-19,5



1- Depends on the road regulations in each country.

2- Trailer designed according to this capacity.

3- May vary depending on cofiguration of product.

4- Depends on the road regulations in each country.

5- Trailer designed according to this capacity.

6- Just for products which are builded according to 167/2013/EU.

PRODUCT DETAILS

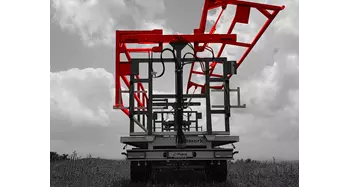

SIDE LOCKING SYSTEM
SIDE LOCKING SYSTEM Side Wings can move vertical and horizontal. Move them up when you are starting to loading. If you need larger loading area move Wings left and right to reach larger area. And move them down when you complete loading operation. Wings will lock your bales during all transportation period. Enjoy with your safety and comfortable drive.

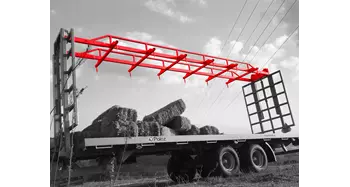

TOP LOCKING SYSTEM
TOP LOCKING SYSTEM Top Equipment can move down and up. Equipment has nails which are goes into bales and hold them. Move locking part up and start loading. zve locking part down and see how nails are locking bales for safety after loading completed.

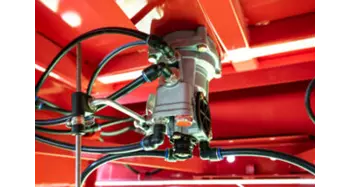

BRAKE FORCE REGULATOR AUTOMATIC
BRAKE FORCE REGULATOR AUTOMATIC It control automatically the brake pressure exerted at the wheels based on vehicle load.

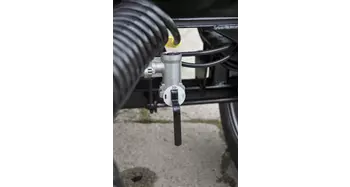

BRAKE FORCE REGULATOR MANUAL
BRAKE FORCE REGULATOR MANUAL To operate braking system properly adjust it to full/half load or empty.

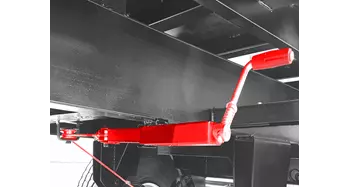

MANUAL PARKING BRAKE
MANUAL PARKING BRAKE The parking brake is designed to keep your vehicle stationary or motionless when parked.

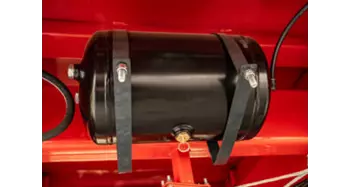

60 LITERS AIR TANK
60 LITERS AIR TANK Air storage tanks are used to hold compressed air.

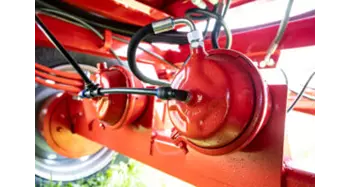

PNEUMATIC BRAKE ACTUATOR
PNEUMATIC BRAKE ACTUATOR Brake actuators are the devices that convert the compressed air force within a trailer air reservoir into a mechanical force, which activates the brake.

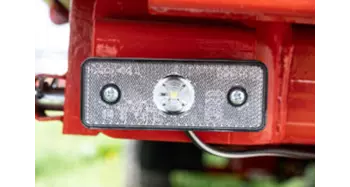

FRONT POSITION LIGHT
FRONT POSITION LIGHT Front position lamp means the lamp used to indicate the presence and the width of the trailer when the latter is viewed from the front.

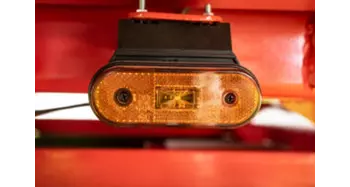

SIDE POSITION LIGHT
SIDE POSITION LIGHT Sidelights aren't as bright as headlights, so are used by drivers to make themselves more visible to other traffic during times when it's not dark enough for main lights.

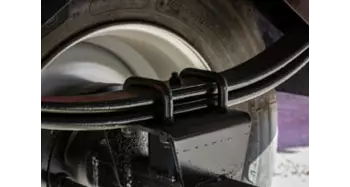

PARABOLIC SPRING
PARABOLIC SPRING Parabolic springs are a modern implementation of the traditional leaf spring.

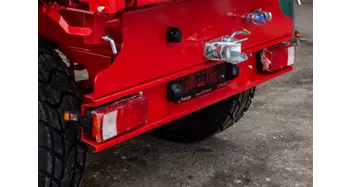

REAR LIGHTS
REAR LIGHTS Includes direction, brake, position and license plate light. It works synchronously with the tractor. Connection is with 7 pins plug / 12v electricity.

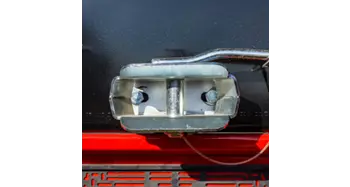

REAR HITCH
REAR HITCH You can connect your 2nd trailer with rear hitch. Also you will have 2nd trailer electricity, brake and hydraulic connection.

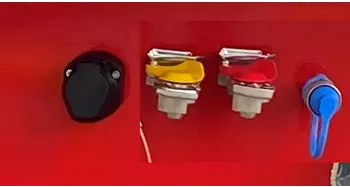

REAR CONNECTIONS
REAR CONNECTIONS Using with rear hitch. When you connected 2nd trailer to rear hitch you should connect brake and electricity for safe drive. You can connect hydraulic for 2nd trailer tipping.

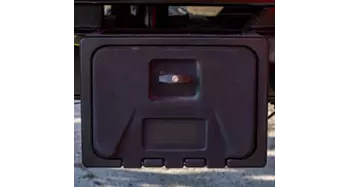

TOOL BOX
TOOL BOX Nobody knows that which time you can face with problems. Therefore it is good to be ready for small operations. You can keep your Equipments with you into tool box. Tyre wedge is ready to use also.

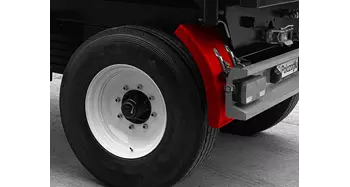

FENDER
FENDER Trailers are equipped with fenders to block your mudguards during transportation. Palaz trailers are paying attention to drivers which are at your back on the road to safe drive

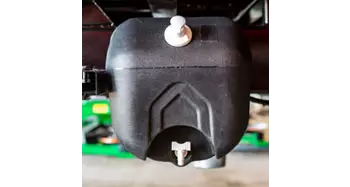

WATER TANK
WATER TANK WATER TANK

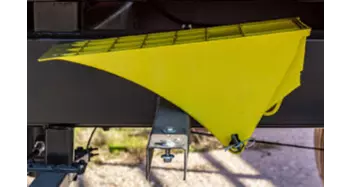

WHEEL WEDGE
WHEEL WEDGE WHEEL WEDGE

OPTIONS

Standards Specifications
  • 4 mm Platform
  • Front & Rear Barriers
  • Lashing Holders
  • Pneumatic Brake System
  • Parking Brake
  • Position Lights
  • Parabolic Suspension
  • Fenders
  • Wheel Wedge
  • *All Standards are Configured For 167/2013/EU Regulation and for promotional purposes. Please contact with PALAZ or your PALAZ partner for exact product and configuration.
Options Specifications
  • Side Locking System
  • Top Locking System
  • Lashing Belts
  • Rear Hitch
  • Rear Electricity Connection
  • Rear Brake Connection
  • Water Tank
  • Longer Front & Rear Barriers
